- Itercom: Yes
- Power: Dry battery
- Display: Color
- Feature: Photograph,Video
- Connection Type: Wireless
- Item Type: Video Doorbell
- Alarm: Yes
- Certification: CE,FCC
1. The product is installed at the position of the peephole, replacing the optical door viewer, integrating the doorbell, and monitoring function. Has 4.3 display, user could see the outside environment on the screen. Support motion detection, while motion detection was activated, the door viewer will record the video and storage in TF Card.
2. The product support the wifi app remote control, user can wake up the device through the phone, support real-time video call, and check the data in the TF Card.
3. When a visitor press the doorbell, or the device motion detection was activated, the device will push the information to the mobile terminal, to remind the user to make a voice video call with the visitor or to wake up the device to view the real-time video.

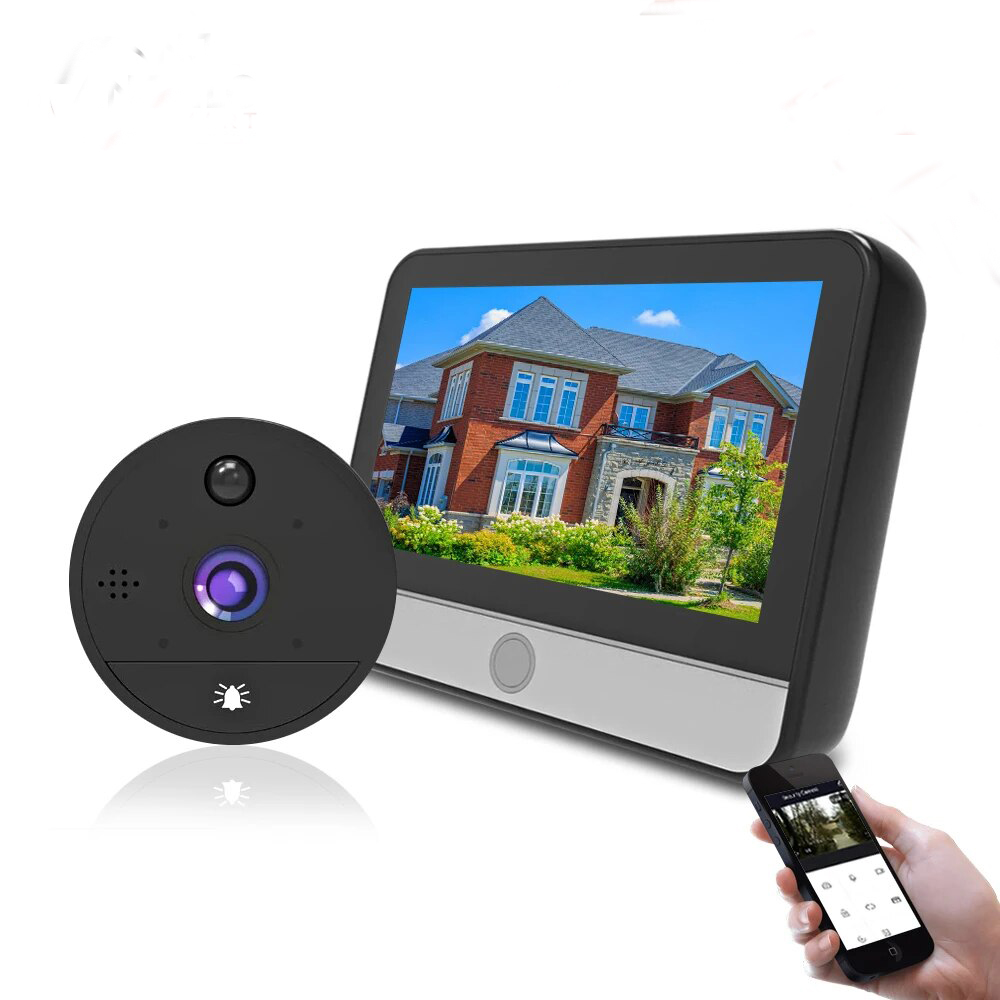

4. The camera replaces the traditional optical door viewer. with a 4.3inch display, has a large visual range, and is not limited by height. It’s convenient for children and older.
5. Zinc alloy material camera (anti-theft, anti prying, anti peeping).
(CMOS 2 megapixel, maximum support 1280 * 720p, display / record outdoor pictures).
*Press the doorbell, the camera will capture a 1MP photo and storage in the cloud. you can check the visitor record once you log into your account. no matter you change the phone or not.
*When the motion detection is activated, the camera will capture a 1MP photo and storage in the cloud. you can check the visitor record once you log into your account. no matter you change the phone or not.
*The doorbell function is convenient for the visitor to inform the user, via door ring and phone message.
*Insert TF card. When the motion detection is activated or pressed the doorbell, the machine will record a 15s video automatically.
*The camera with 4pcs infrared lights, Night vision supports an effective distance of 2 meters.
*Use 1pcs photodiode for light collection. If the ambient light is lower than 0.2Lux, turn on the night vision automatically.
The camera with indicator light:
*When the visitor press the doorbell, the indicator light will flash.
*After the user connects the equipment, the undisturbed light will always be on. After the user hangs up the call, the light turns down.
*4.3-inch TFT HD display screen.
*Screen resolution 480 * 270.
*Supports TF card, up to 32G.
*Automatic cycle coverage, intelligent recognition.
when the memory of the TF card is full, the new video will automatically cover the oldest video chronologically.
*Built-in memory chip, when power is off, you will lose your setting data.
*In standby mode, press the monitoring button to wake up the machine, you can see the outdoor environment on the screen.
This machine could collocate with our smart lock, you can control the smart lock through the APP
A) Power supply: built-in 8000mah polymer battery.
B) the main machine is equipped with a toggle power switch to cut off the power supply of the whole machine;
The machine adopts a power-saving design, and the host will enter the standby state in 15 seconds, standby time 24moths, working time 150days (according to the number of wakeups per day, the total number of wakes is 3000).
The machine is easy to use.
1) install the machine on the door according to the instructions.
2) power supply (install the battery or connect micro USB).
3) watch the situation outside the door on the screen.
4) insert TF Card (if you need to take photos for storage), and press the key to view the situation outside the door, take photos / audio videos, browse photos/videos. It is recommended to use a high-speed TF card.
*Use Huawei Lite OS operating system.
*Huawei Hisilicon solution, 4.3-inch HD color screen, built-in Ding Dong App.
*Active wake-up function.
*Ultra-low-power waste design (standby current as low as 200uA).
*Device second connection (connected within 1 second).
*The PIR anti-theft function provides an active wake-up function
*The mobile app, supporting mobile video viewing and intercom functions.
*The built-in high-capacity polymer battery supports a USB charge.
*2 million pixel CMOS sensor;
*M7 all-glass 200W pixel HD lens;
*Multiple video formats are supported, up to 1280*720p (25FPS);
*It has wide dynamic and low illumination function, and supports automatic color to black;
*Adopt 32-bit processor and professional video code chip;
*Infrared distance 1-2 meters,4pcs 850 infrared lights, PMW spectroscopy.
*Built-in Huawei Lite OS, fast startup, online time less than 1 second;
*Support recording mode or photographing mode for visitor record;
*Video recording time is 15 seconds and saved in the TF card. *Snapshot will be saved in the cloud and pushed to the app;
*The automatic shutdown time has 15 seconds;
*Support PIR motion detection;
*Support snapshot function;
*4.3-inch IPS high-definition display screen; Unique installation method of built-in positioning ball + hanging plate and buckle (patent application).
*Built-in 8000mah polymer battery;
*Integrated design, compact structure, high reliability;
*All metal camera, beautiful and sturdy.
*It is easy to install through the peephole.
*Adopted EEPROM data storage mode and the stored data will not be lost after a power failure;
*Support TF Card. Up to 32G;
1*after-sales service card
1*storage card (optional)
